Coverage Geometry
54 x 70 and 63 x 84 hardtop sizes support different center console coverage priorities from compact to expanded deck protection.
Commercial Duty Fiberglass T-Top
Engineered Fiberglass Hardtop Coverage for Demanding Center Console Use
Hand-laid molded fiberglass top with anodized aluminum reinforcing grid, available in two coverage sizes and built for adjustable fit, clean rigging, and practical marine-duty installation.
Made in USATwo Top SizesAdjustable Leg Configurations
Configurations from $2,599
Owner-Install Workflow
Assembly and installation guidance plus backing plates and through-bolt hardware are included for do-it-yourself installation planning.
Operational Rigging
Radar, antennas, flood lights, and navigation lights mount directly to the hardtop, with concealed wiring paths through frame and leg structure.
Product Overview and Coverage Strategy
Hand laid molded fiberglass top in wind-deflecting design with anodized aluminum reinforcing grid, fiberglass white exterior, and gel-coated interior.
- 54 x 70 coverage often preferred in the 17' to 21' range.
- 63 x 84 has been installed on boats to 34' with 9' beam.
- 63 x 84 provides nearly 37 square feet of coverage.
- Molded 2-inch perimeter overhang supports full gunnel-width enclosure fitting.
Fitment, Weight, and Mounting Details
Telephone-booth style enclosures are supported where needed, and beam-adjustable leg geometry provides console-width flexibility.

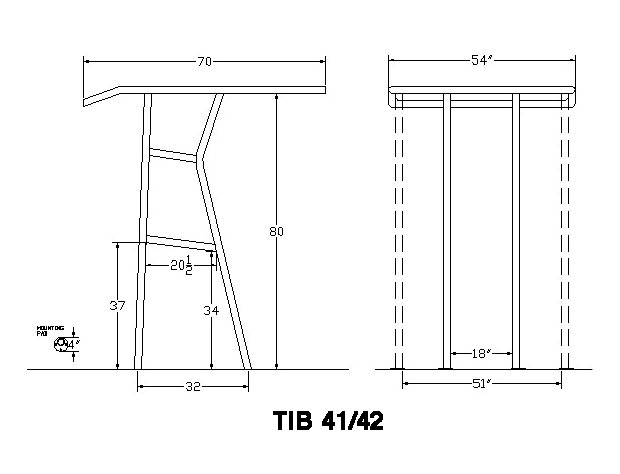

- Console-width fit up to 50 inches with 54 x 70 hardtop.

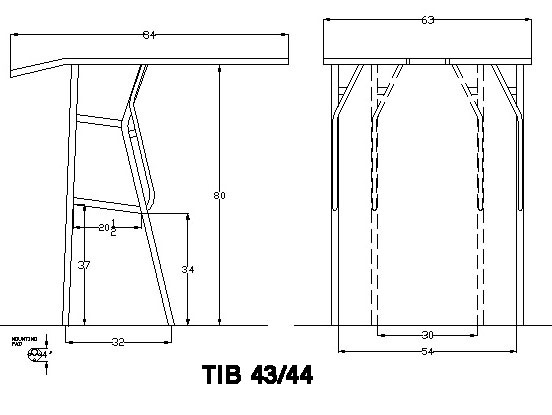

- Console-width fit up to 59 inches with 63 x 84 hardtop.
- Approximate top weights: 100 lbs (54 x 70) and 125 lbs (63 x 84).
- Eight mounting points with adjustable sway braces are standard.
Commercial Duty T-Top Pricing
| Configuration | Model | Price |
|---|---|---|
| 54 x 70 T-top with standard leg | TIB4142/55.1 | $2599 |
| 54 x 70 T-top with standard leg and 4 welded aluminum rod holders | TIB4142/55.1CR | $2789 |
| 54 x 70 T-top with "wide" leg | TIB5354/55.1 | $2599 |
| 54 x 70 T-top with "wide" leg and 4 welded aluminum rod holders | TIB5354/55.1CR | $2789 |
| 63 x 84 T-top with standard leg and brace | TIB4344/75.1 | $3099 |
| 63 x 84 T-top with standard leg, brace, and 6 welded aluminum rod holders | TIB4344/75.1CR | $3399 |
| 63 x 84 T-top with "wide" leg and brace | TIB7374/75.1 | $3099 |
| 63 x 84 T-top with "wide" leg, brace, and 6 welded aluminum rod holders | TIB7374/75.1CR | $3399 |
Optional 4 Rod Rocket Launcher
Adds welded aluminum rod-holder capability for users who prioritize overhead rod storage.
MP15000 55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw is 4.8 amps each, 9.6 amps per pair at 12 volts. Wire with minimum 14 gauge tinned stranded marine wire. Includes mounting bracket options for Atlantic Towers structures.
Wide Leg Configurations
Accommodates side-door consoles and other special fit requirements.
MA22600 Anchor/Running Light
Two-way navigation lamp on an anodized aluminum mast with matching finish. Functions as an all-round light with both sides illuminated, or a forward steaming light with the forward half illuminated. Mounts directly to the fiberglass top.
Source-Based FAQ
Commercial Duty Planning FAQ
Because of its adjustability, the Commercial Duty Fiberglass T-top will fit 90% of center console boats. Inboard-powered center console boats with tilting consoles, and consoles with larger openings such as side doors, may require special hardware or leg configurations.
54x70
63x84
Tell us your boat year, make, and model.
We will help confirm fitment, leg configuration, and best-next product path.
Note: There is a 10% re-stocking charge for cancelled or returned merchandise.
Due to continued product improvement, Atlantic Towers reserves the right to make changes without notice.
