How is the Fishing Arch shipped to me?

The arch ships by freight because of package size, with discounted U.S. and Canada arrangements plus additional destination options.

What happens if my Fishing Arch is damaged in shipping?

If shipment damage occurs, refuse delivery and Atlantic Towers will arrange replacement.

Is my Fishing Arch guaranteed?

Yes. The Fishing Arch is covered for 5 years and warranty details are published on Atlantic Towers.

How to buy a Fishing Arch?

You can purchase directly from Atlantic Towers or through authorized reseller partners worldwide.

Can I return my Fishing Arch if I decide not to keep it?

Standard structures can be returned within 30 days in original packaging and new condition, freight prepaid, with a 10% restocking fee.

Fishing Arch

Adjustable Arch for Fishing, Radar, and Watersports Rigging

Proprietary telescoping architecture adjusts for walkaround fisherman and express cuddy cabins up to 26+ feet and 8'6" beam. Built from schedule 40 marine-grade anodized aluminum with a custom-install look.

Shop Fishing Arch Fitment Guidance

Standard Package

$999

4 rod holders, radar plate, 4 antenna plates

Heavy Duty Watersports

$1,599

Includes integrated tow fitting

Made in USAFreight Shipping Available

Rod Holders Standard

12" x 12"

Large Radar Plate

Antenna Plates Included

Custom-Style Strength

Delivers the appearance and rigidity of a custom welded unit once installed on your boat.

Canvas-Compatible Geometry

Designed to fit around existing bimini and navy-style tops without blocking normal cover use.

Pin & Pad Mounting

Four-point proprietary Pin & Pad fittings use nylon bushings to help isolate vibration from the fiberglass surface and allow quick dismount by removing four 3/8" bolts.

Engineering Detail

Proprietary Telescoping Design

Atlantic Towers uses a proprietary telescoping architecture so the Fishing Arch can be adjusted to real boat geometry before final lock-in. This supports cleaner positioning on walkaround and express layouts while preserving the custom-install look the platform is known for.

Adjusts to fit walkaround fisherman and express cuddy cabins up to 26+ and 8'6" beam.
Supports broad fitment across flybridge and express configurations, with center-console gunwale mounting possible on select layouts.
Overall height can be tuned by trimming legs before base fitting installation.
Works with proprietary Pin & Pad fittings for four-point mounting and optional quick dismount.

Review Fitment Guidance

Configuration & Fit

Leg Assembly & Clamp Positioning

Atlantic Towers leg assembly logic is built for practical dockside fit-up. During assembly, clamps and supporting legs can be positioned repeatedly to dial in geometry before final base fitting lock-in.

Supporting legs may be mounted outside or inside, depending on deck layout and installation path.
Proprietary clamps are designed not to mar finish, so legs can be repositioned as needed during fit tuning.
Legs can be trimmed to length before base fitting installation to set final top height.
Base fitting options support angled mounting surfaces and reduce the need for separate fairing pads.

View Installer Options

Installation Engineering

Pin & Pad Positioning System

The Fishing Arch mounts in four locations using Atlantic Towers proprietary Pin & Pad hardware. This system is built to support secure positioning while keeping installation and seasonal handling practical for owners and yards.

Four-point Pin & Pad mounting ties the arch to the boat with a repeatable installation layout.
Nylon bushings help isolate Fishing Arch vibration from fiberglass contact surfaces.
The arch can be dismounted by removing the four 3/8" bolts, useful for limited-height storage situations.
For folding operation, the KIT02000 & KIT02200 hinge option replaces standard Pin & Pad hardware.

View Hinge System Option

Universal Fit Advantage

Arch Platform for Radar, Rods, and Clean Wiring

Every Fishing Arch includes a 4-rod launcher, large radar plate, and mounting plates for additional antennas. Cabling can be routed inside the frame for cleaner rigging and fewer exposed runs.

If your build is radar/antenna focused, rod holders may be deleted for credit, matching the live product policy.

Spring-update bridge panel integration helps conceal wiring at the radar plate and gives the structure a refined finished look.

Standard Radar/Fishing Arch adjusts through an approximate beam mounting range of 85" to 123", and overall height can be tuned by trimming legs before final base fitting installation.

View Fish Arch Application Chart View all Arch Options

Fishing Arch rocket launcher detail — 4-rod rocket launcher included

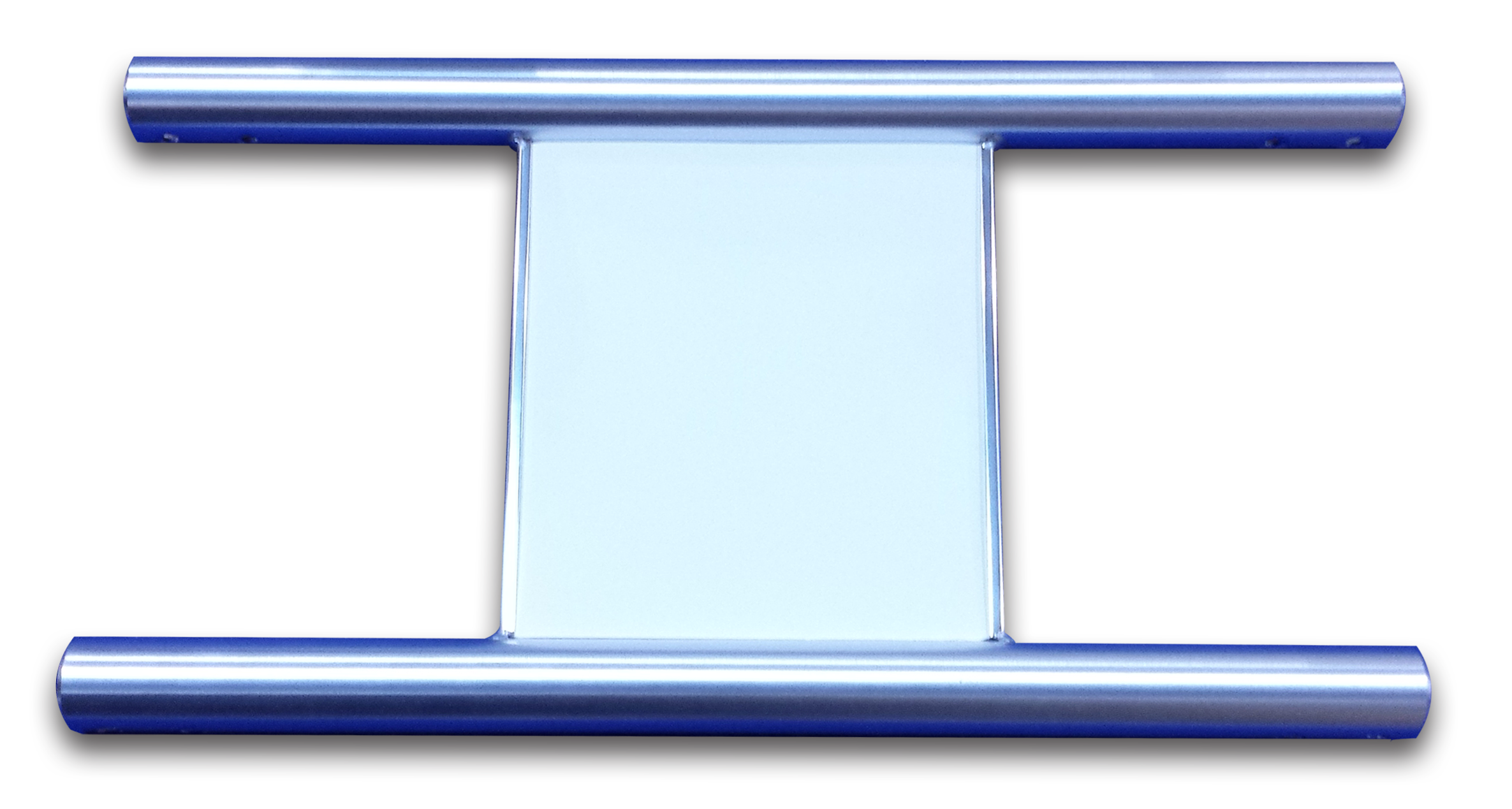

Bridge cover panel for radar plate cable concealment — Bridge cover panel for concealed wiring

Installation Video

Step-By-Step Fishing Arch Installation Reference

This field installation walkthrough shows the real mounting flow, helping you validate sequence, hardware handling, and fit checks before beginning work on your boat.

Covers practical setup progression from positioning to final hardware lock-in.
Reinforces confidence for owner-install paths and pre-install planning with your yard.
Supports cleaner execution when paired with official installation instructions.

Open Installation Instructions

Available Options

Accessory Upgrades

Add folding, rod management, net handling, and navigation-light options to match your fishing workflow.

Yes. The Standard Fishing Arch was designed for owner installation and includes instructions, backing plates, and through-bolt hardware. If you prefer professional help, see our Services page. Installation walkthrough: Radar/Fishing Arch Installation.

*Price and shipping offers are subject to change without notice. Freight delivery may require surcharges for limited-access locations.

There is a 10% re-stocking charge for cancelled or returned merchandise.

Due to continued product improvement, Atlantic Towers reserves the right to make changes without notice.
