Transom Arch and T-Top Configurations for Inflatable and RIB Platforms
Complete inflatable-focused product line including transom mounted arch roll-bar configurations and Trampoline T-top leg layouts engineered for compact RIB console geometry.
Transom AdjustableSchedule 40 Marine AluminumOwner-Install Ready
Configurations from $1,199
New-for-2007 Inflatable Program
Atlantic Towers developed a complete inflatable-specific Tower In A Box range with a transom mounted arch roll-bar layout and a special Trampoline T-top leg configuration.
Transom Arch Construction
High-strength welded frame built from schedule 40 marine-grade aluminum pipe, nearly 2 inches in diameter, with durable bright clear anodized finish.
Core Transom Features
- Adjustable to fit transoms on nearly any inflatable
- All hardware, backing plates, and mounting bolts included
- Cables and wiring routed inside frame
- Four transom mounting points and boxed delivery

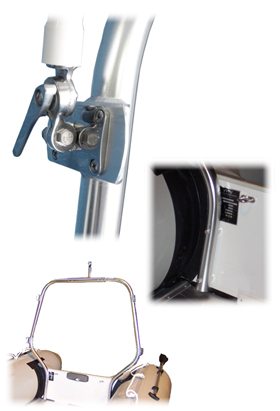

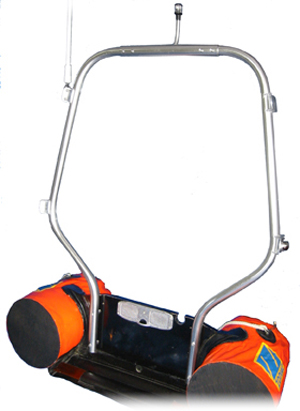

Single Loop Transom Mounted Arch for Inflatable
$1199
Optional all-round white navigation light supports a complete International Rule setup when paired with lower red/green side lights (not included).

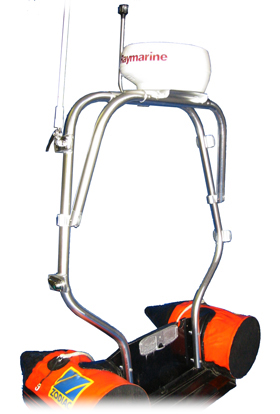

Single Loop Arch with Equipment Platform
$1499
Equipment platform configuration supports first responder and enforcement lighting or radar, with clamp adjustment to level the platform regardless of transom angle.

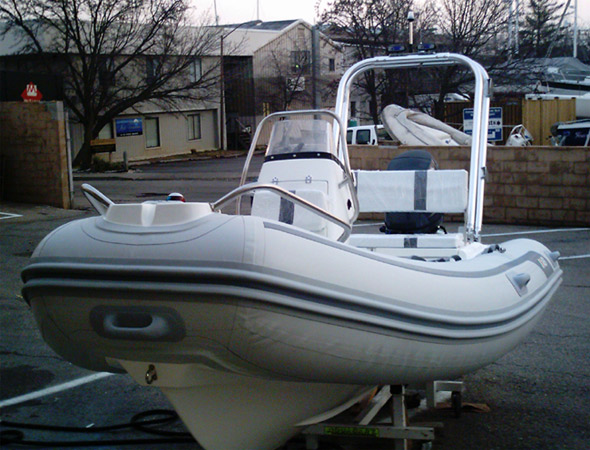

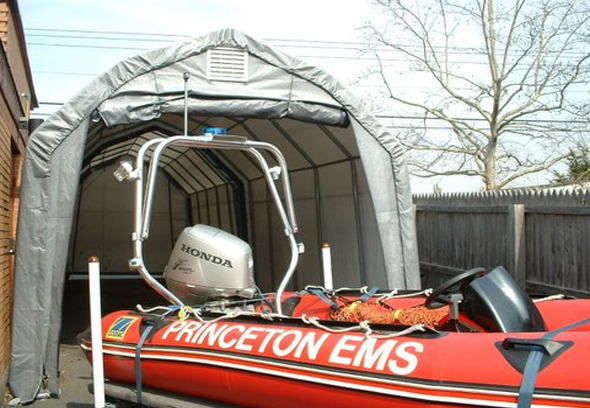

Four Point Arch for Rigid Inflatables
$1599
Designed for rigid-hull inflatables with fully molded aft decks. Forward and aft loops adjust independently from 40 inches on-center up to 60 inches, with 2-inch footprint bases and Delrin leveling wedges for fold/remove capability using quick-release pins.

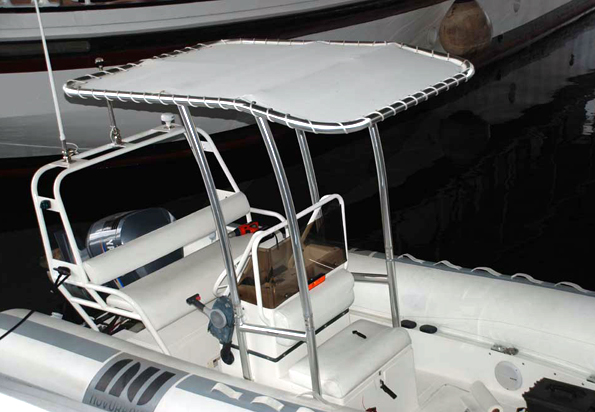

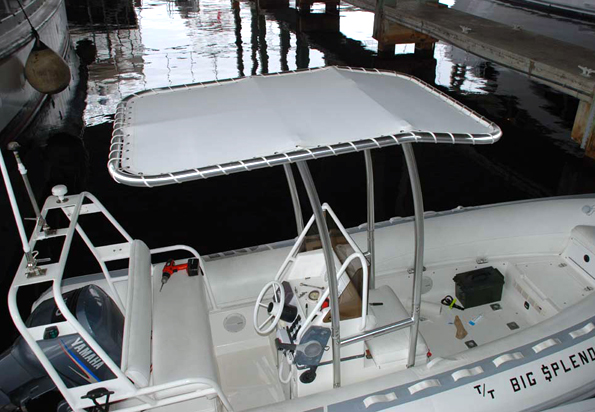

Trampoline T-top with Special Leg Configuration
$2299
Moves mounting bases closer fore/aft to suit smaller RIB consoles and lowers the cross bar for easier installation. Legs remain fully adjustable port-to-starboard, and the top can be offset port or starboard to compensate for offset consoles.

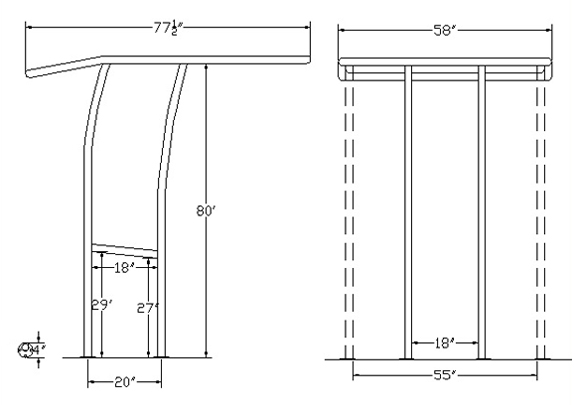

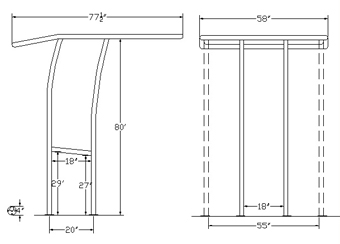

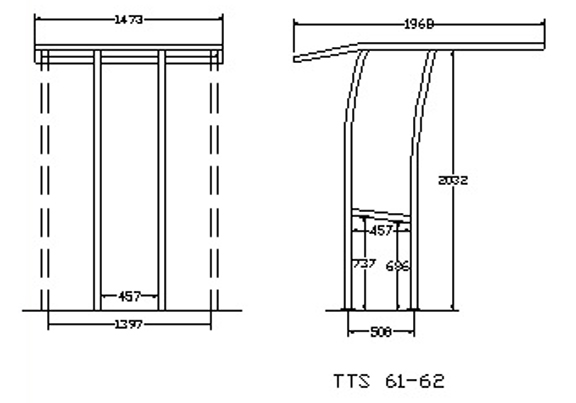

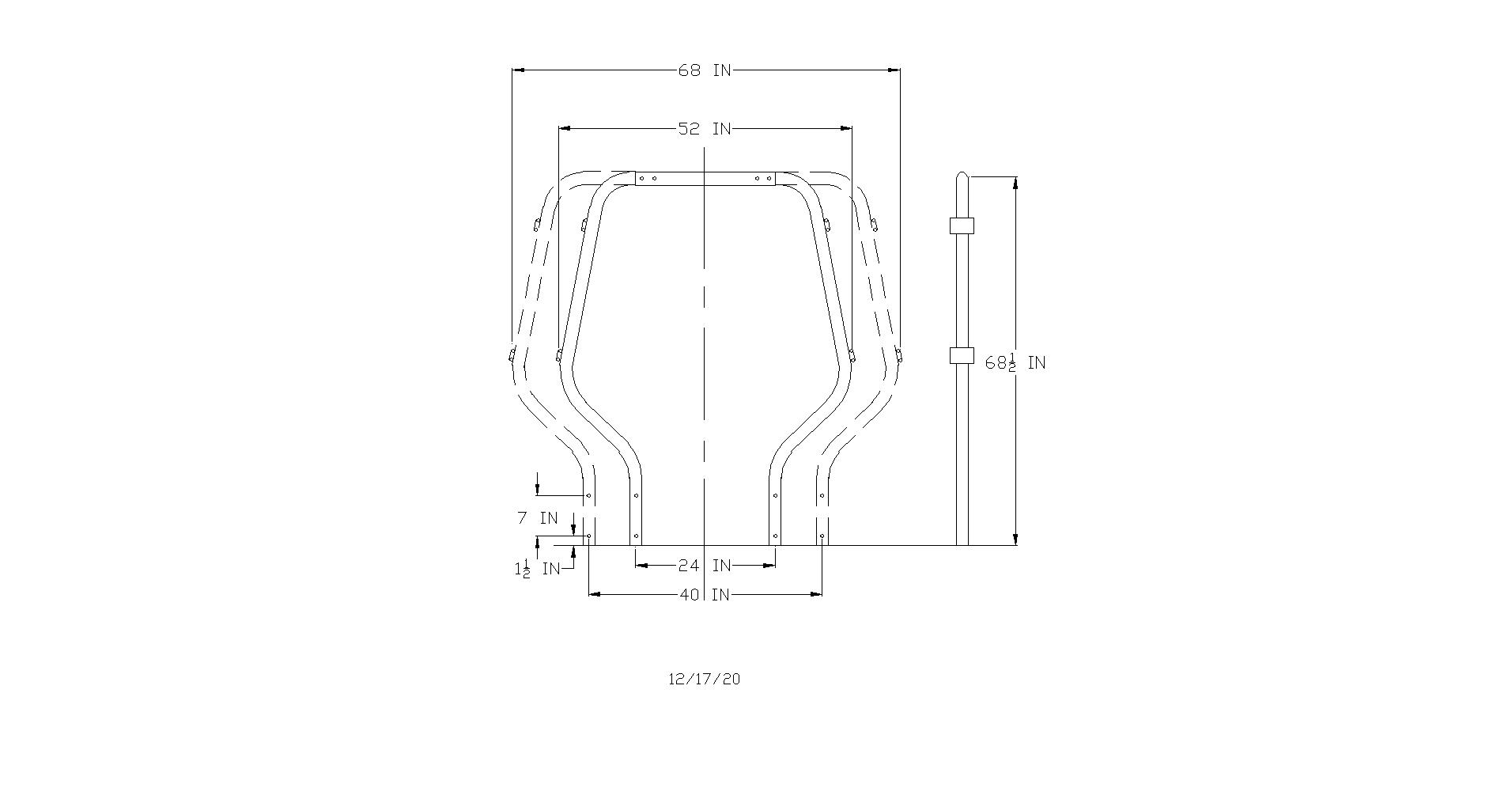

Fitment Drawings and Metric References

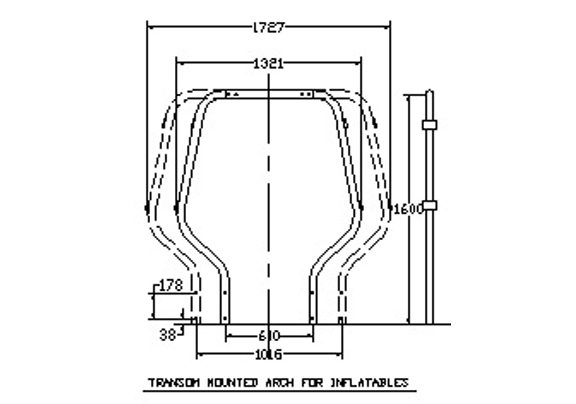

Transom Mounted Arch installations require at least 26 inches of clear mounting width. Reference drawings are provided for fit checks and metric conversion review.
Click-through references are included below for enlarged and metric variants from the source page.
How to Purchase
You can purchase inflatable arch and T-top configurations directly from Atlantic Towers or through authorized reseller partners worldwide.
Source-Based FAQ
Transom Mounted Arch FAQ
Because of its adjustability, the Transom Mounted Arch is designed to fit inflatable boats with an open transom. It can mount on either the inboard or outboard side of the transom and requires a clear mounting area of at least 26 inches wide.
Source-Based FAQ
Pro Trampoline T-top Fit and Installation FAQ
Because of its adjustability, the Pro Trampoline T-top (Model TTS7172/55.5) fits most center console boats up to 23 feet and over. Inboard-powered boats with consoles that tilt fully or partially may require special hardware or leg configurations.
