Sail Arch® Systems
Universal Sail Arch® Platform for Cruising Boats
Built for sailors who need stronger utility from their stern structure. Support solar arrays, antenna layouts, tender handling, and integrated accessories with a proven Atlantic Towers® architecture.
High-Capacity Options
Schedule 80 Mark 2 options increase stiffness and support larger solar and accessory payloads.
Accessory Ecosystem
Expandable with tender handlers, racks, lighting, radar, communications, and custom mounting kits.
ENGINEERING FOCUS
Sch80 Mark 2

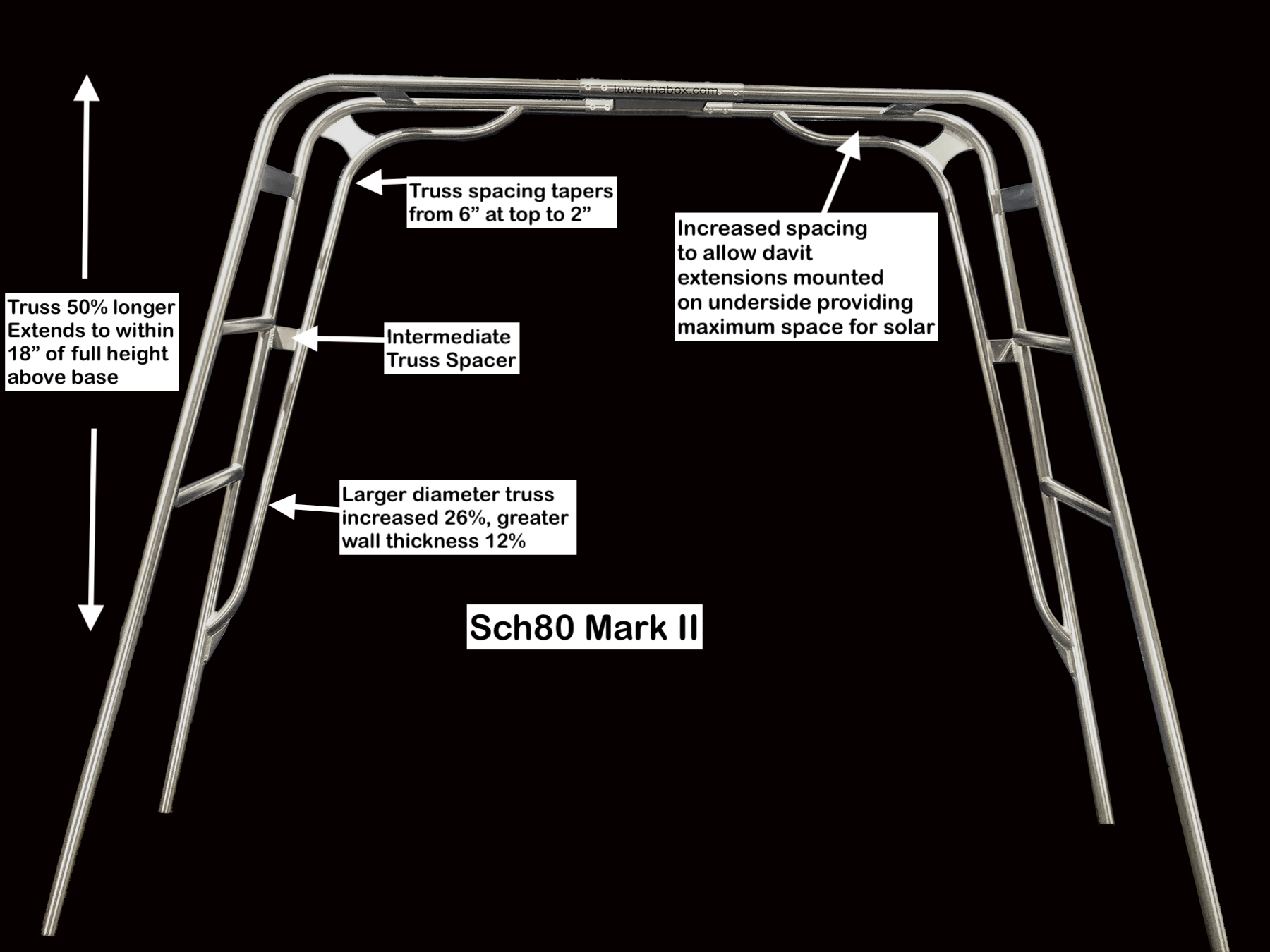

Cruising Sailors want more: more power, bigger tenders, and more usable capability on deck. The Sch 80 Mark 2 Sail Arch® is built for that mission with a larger extended truss for improved lateral stability and higher carrying confidence.
What Sch80 Mark 2 Delivers
- Larger extended truss for increased resistance to lateral motion in heavier seas.
- Grid-ready solar capacity for up to four large panels and more than 1600 watts.
- Accessory-ready platform for Tender Handler, kayak/paddleboard racks, Starlink, and motor cranes.
Reference Media
Technical Center
Intructions, educational and client videos, pricing, accessories and Frequently Asked Questions.
Technical Resources
Model & Price Tables
The live Sail Arch® source contains multiple distinct sizing/price tables. They are separated below by configuration family for easier comparison.
Inline - Standard Sail Arch® (Schedule 40)
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $3,100 |
| TIB24400 | 90-106 | 90-106 | $3,100 |
| TIB24500 | 102-118 | 102-118 | $3,200 |
| TIB24600 | 114-130 | 114-130 | $3,300 |
Inline - HiCapacity Sail Arch® (Schedule 80)
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $3,850 |
| TIB24400 | 90-106 | 90-106 | $3,850 |
| TIB24500 | 102-118 | 102-118 | $3,950 |
| TIB24600 | 114-130 | 114-130 | $4,050 |
Inline - Mark 2 HiCapacity (Schedule 80)
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $4,500 |
| TIB24400 | 90-106 | 90-106 | $4,500 |
| TIB24500 | 102-118 | 102-118 | $4,600 |
| TIB24600 | 114-130 | 114-130 | $4,700 |
| TIB24650 | 126-142 | 126-142 | $4,900 |
Inline - Extra Wide (Schedule 80)
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 128-142 | 128-142 | $4,400 |
| TIB24500 | 140-154 | 140-154 | $4,500 |
| TIB24600 | 152-166 | 152-166 | $4,600 |
| TIB24650 | 164-178 | 164-178 | $4,800 |
Offset - Standard / HiCapacity / Mark 2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-90 | 68-80 | $3,200 / $3,850 / $4,500 |
| TIB24400 | 90-106 | 80-96 | $3,200 / $3,950 / $4,600 |
| TIB24500 | 102-118 | 92-108 | $3,300 / $4,050 / $4,700 |
| TIB24600 | 114-130 | 104-120 | $3,400 / $4,150 / $4,850 |
Offset - Extra Wide (HiCapacity / Mark 2)
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 116-144 | 106-134 | $4,400 / $5,150 |
| TIB24500 | 128-156 | 118-146 | $4,500 / $5,250* |
| TIB24600 | 140-168 | 130-158 | $4,600 / $5,400 |
| TIB24650 | 152-180 | 142-170 | $4,800 / $5,600 |
Precision Accessory Modules
Option cards align with live sail-accessory offerings. Multi-image options include compact in-card sliders for faster visual comparison.
Tender Handler
$1,900Articulated pivot design provides reach to lift tenders behind sugar scoops and swim platforms.
Add to System
Clamp on Wind Generator Base & Mast
$499Model KIT7700
Clamped mast and receiver system for wind-generator integration with fixed or removable pin options.
Add to System
Solar Panel Mounting Kit
$339Model KIT76000
Kit includes rectangular aluminum tubes and curved washers for flexible arch-frame solar placement.
Add to System
Adjust-O-Launcher
$139Model AJ30500
Patented clamp-on rod holder pivots through multiple positions and fits standard 1-1/2 inch marine pipe.
Select Options
Paddleboard Rack
$449Anodized aluminum rack with tie-down points and grip rails. Available in clamp-on and bolt-on versions.
Select Version
Pin & Pad Hardware
IncludedProprietary nylon-bushed mounting system that minimizes vibration and allows quick dismounting for transport.
Standard FittingProduct FAQs
